Gemini Hatch

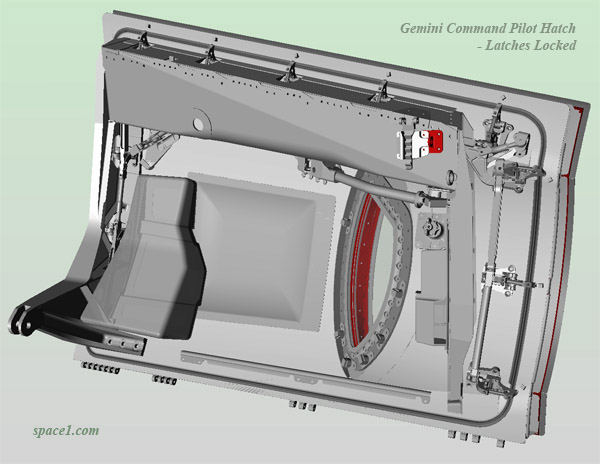

  • Digital model of the Gemini command pilot’s hatch, shown locked and unlocked. Compare with the NASA photo below.
Gemini_hatch_unlocked_12-18-07_601
Gemini_12_hatch
  • The NASA photo above shows the Gemini XII command pilot’s hatch after recovery of the spacecraft.

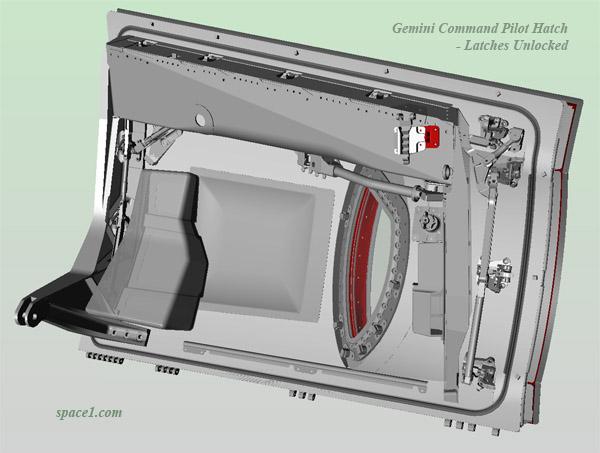

  • The hatch mounts 12 latches that lock the hatch during flight. The photo shows the latches unlocked.
Gemini_hatch_beaded_skin300

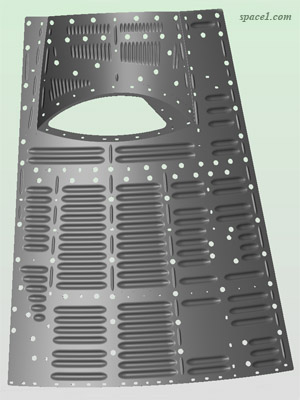

  • Computer model of the shingles on the command pilot’s hatch.
  • Modeled using SolidWorks; based on  over 100 dimensioned McDonnell Aircraft  engineering drawings.

For more information on our exhibit design technique:

Gemini_hatch_in_clean_room

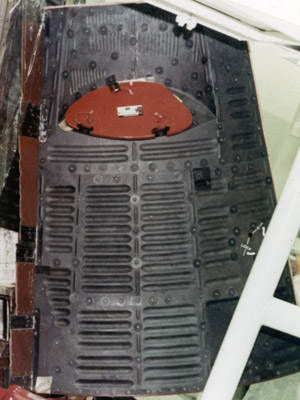

  • NASA photo of the Gemini VIII command pilot’s hatch during assembly.
  • See more views of the Gemini shingles.
