Space Shuttle Scaled Flight Deck Kit

Scaled AutoCAD drawings of the Space Shuttle Flight Deck printed at 1200 dots per inch. Six 8 1/2" x 11" sheets at 1/15 scale, one sheet at 1/25 scale (top view). Orthogonal views (front, top, and side with various features visible) plus an isometric view. Shaded lines help to distinguish different features. Labels correlate features from different views. (See reduced scale scans below.)

Note: Footwell details have been omitted from these plots.

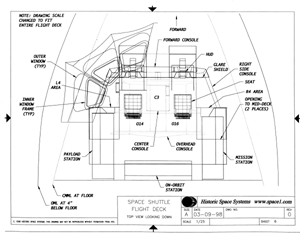

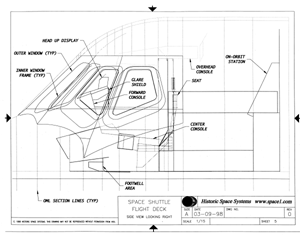

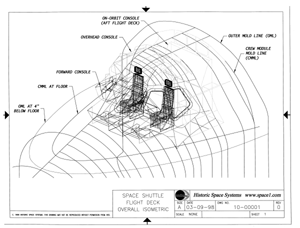

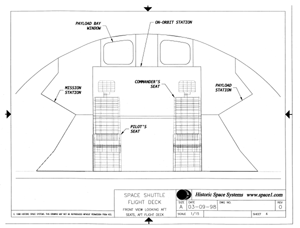

Sample reduced scans of the full set of  plots (not to scale):

Price: US$ 68

International Shipping (Add): US$ 10

Rush Order Price: US$ 102

Sample close up scan of actual plot (not to scale):
