LM Full Scale Panel Scan

This Information Kit consists of an approximately full scale plot of the Lunar Module control panels. (The plot scale is not exact because the original is only an illustration, not an engineering drawing.) The plot measures about 36” tall by about 125” long (over 10 feet!). It gives a very good sense of the true panel size.

The original image was scanned from the Lunar Module Systems Handbook for Apollo 17, dated September 30, 1971. It was modified by moving items from the bottom of the graphic, to the left for a better fit on the plot.

Price: US$ 150

International Shipping (Add): US$ 20

Rush Order Price: US$ 225

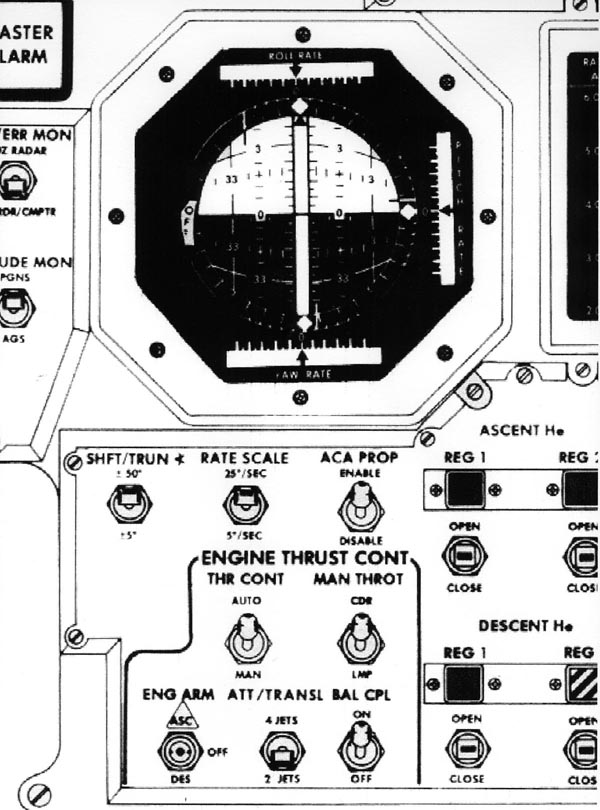

The plot quality can be judged from the section shown below (actual scan of the plotted panels - click for enlarged view):
