Gemini Mirror Holder

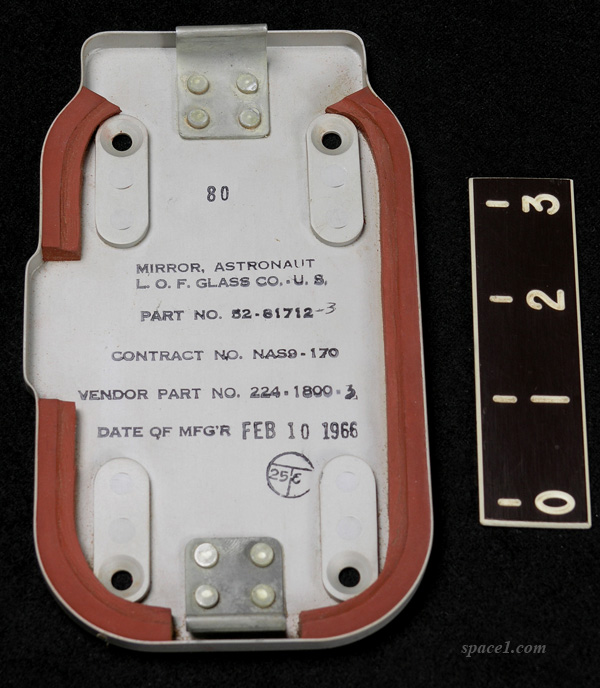

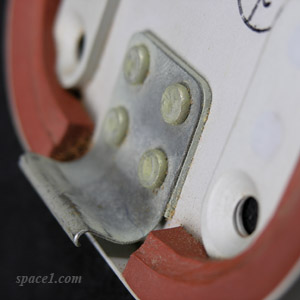

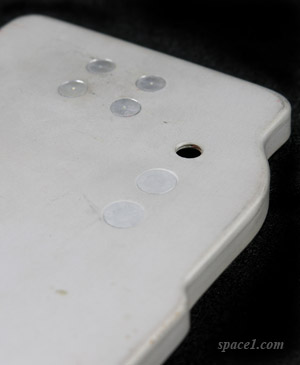

  • Formed aluminum pan for retaining the astronaut’s mirror in its stowed position.
  • Mounted on the left and right sides of the center control panel console.
  • The removable mirror enabled the astronaut to view suit connections and other cabin areas.

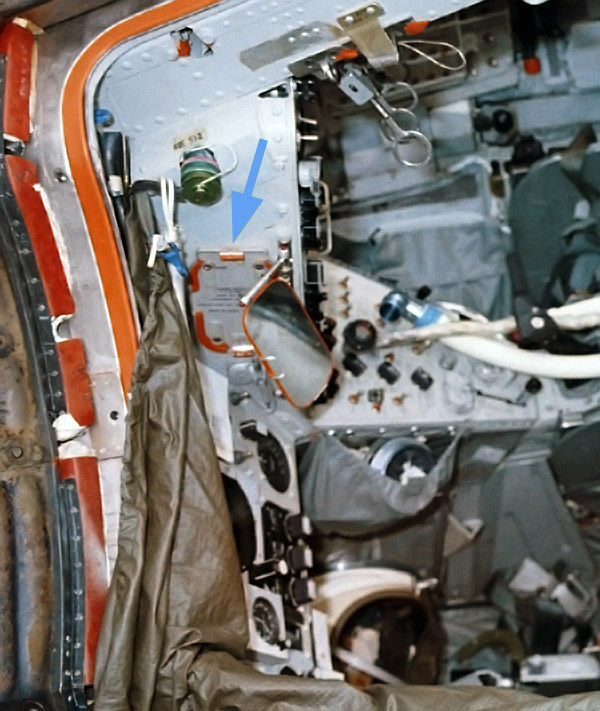

  • NASA photo shows the Gemini IX commander’s mirror assembly and holder (blue arrow).

Also see:

Gemini mirror assembly computer model:

0.16 lbs. (0.07 kg)

mirror_holder600

mirror_holder_bottom300

mirror_holder_back300

G9_mirror
