Apollo Hatch Latch
  • Apollo hatch latch assembly model. This latch design is also used on the Space Shuttle hatches.
  • Images below show: part of the Apollo latch assembly drawing by North American Aviation; the digital model by Historic Space Systems; an Apollo 11 hatch latch; and a physical latch assembly model by Historic Space Systems.
  • Based on fully dimensioned Apollo engineering drawings.
  • The model latch can be moved in the same way as the actual latch. See the Apollo latch model in the fully locked position.
  • Also see the complete Apollo hatch digital model by Historic Space Systems.

Apollo_hatch_latch_ref_dwg

A portion of the Apollo hatch latch assembly drawing by North American Aviation.

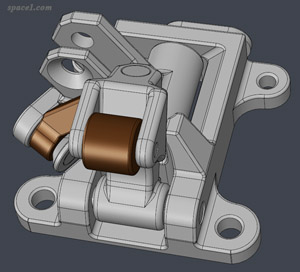

Apollo_latch_digital_model_300

Latch assembly digital model, based on fully dimensioned North American Aviation drawings.

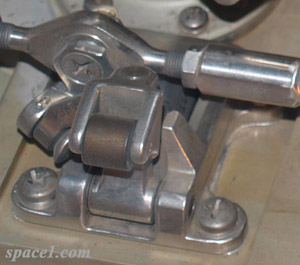

Apollo_11_latch_300

A latch assembly on the Apollo 11 hatch at the Smithsonian National Air & Space Museum.

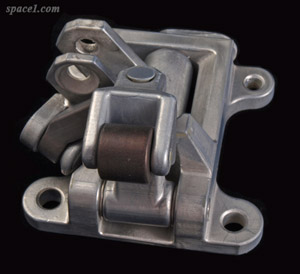

Apollo_latch_model_1_300

Latch assembly physical model, made using Rapid Prototyping techniques.

surface_position_ind_565589_inside_600

handle_model_Gemini_5_600

Gemini_attitude_control_grip_drawing

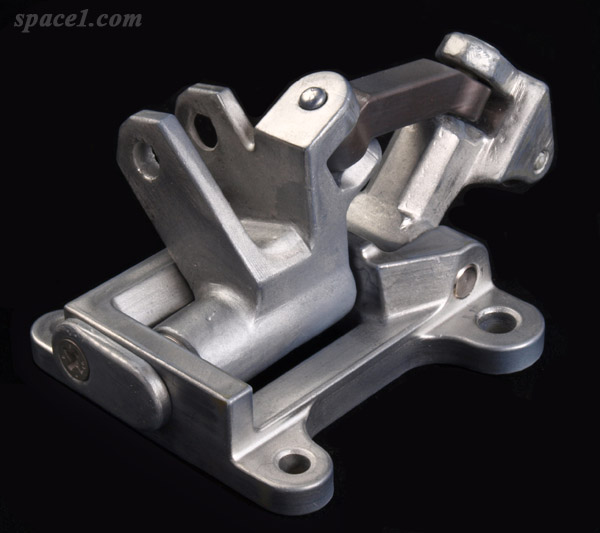

Apollo_latch_model_4_600
