Apollo LM Waste Fluid Bag

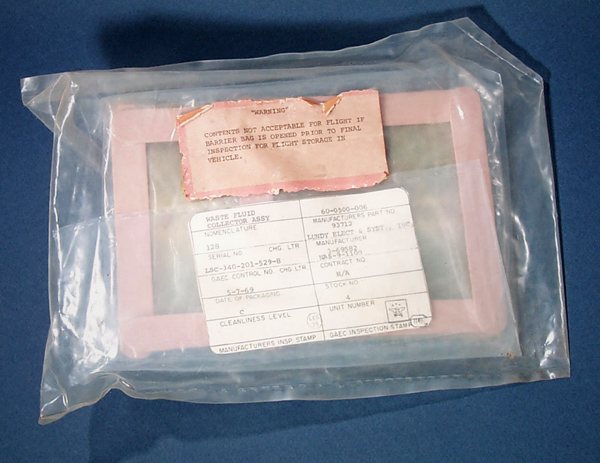

  • Waste fluid collector assembly, size small, for storing urine.
  • A connector on the bag allows transfer of the urine to the bag.
  • The bag has a clear strip along the back to view the bag contents.
  • Maximum rated pressure is 4 PSIG.

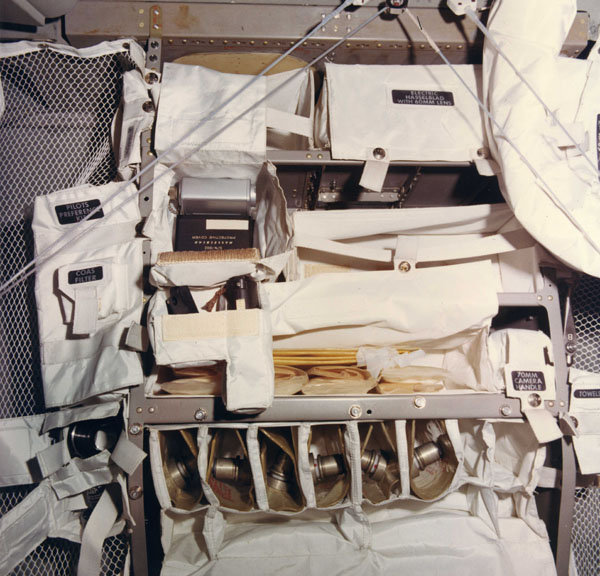

  • NASA photo shows similar bags stowed aboard the Apollo 12 LM (inside the bottom pouch).

0.28 lbs. (0.13 kg)

Also see:

Grumman specification control drawing for this bag:
