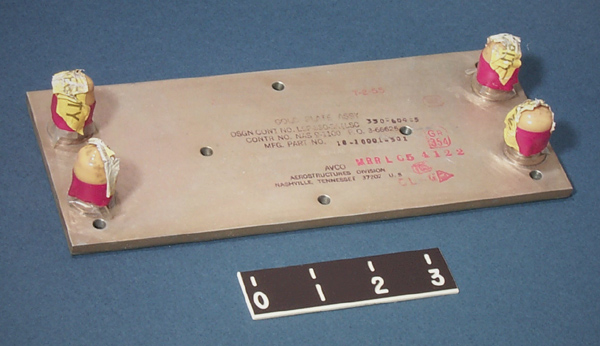

Lunar Module cold plate assembly - maintained the temperature of sensitive electronic equipment.
Includes ports for primary and secondary water coolant in and out.
Only the most critical equipment was cooled using cold plates having both primary and secondary ports.
Used on the Abort Sensor Assenbly (ASA) which contained gyros and accelerometers as a backup to the Primary Guidance System.
0.49 lbs. (0.22 kg)
