Apollo Hatch Gearbox
 Museum Exhibits  Movie Props  Spacecraft Data  Educational Aids  Artifacts  About Us  Links

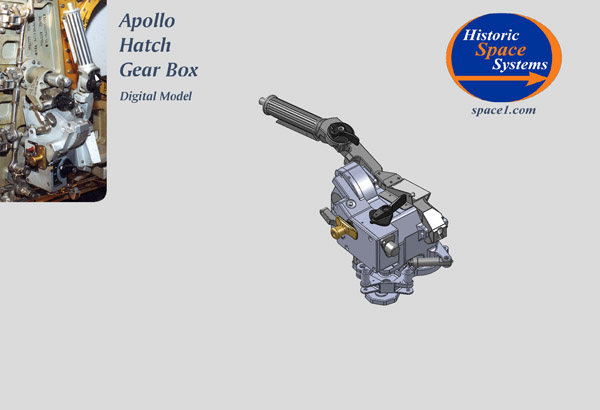

  • Computer model of the Apollo hatch gear box (exploded and assembled).
  • The handle and gear box would allow astronauts to lock or unlock the Apollo side hatch. The gear box also allowed latch operation from the outside. While on the launch pad, the gear box would also activate a plunger to unlatch the Boost Protective Cover hatch.

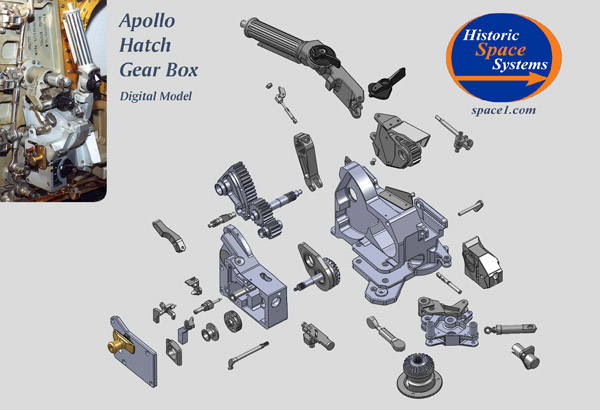

  • Exploded view video shows disassembly of major components.
  • Inset photo shows the Apollo 11 hatch gear box at the Smithsonian National Air & Space Museum
  • Also see the Apollo hatch model..
  • Modeled using SolidWorks; based on dimensioned North American Aviation engineering drawings.

For more information on our exhibit design technique:
Apollo_hatch_gearbox_model_exploded
Apollo_hatch_gearbox_model
